电阻对焊机 扁铁对焊机 圆钢电阻焊机 焊接后接头光滑
产品详情 品牌：通骏 型号：TUN1-25 结构类型：台式 电源类型：交流/工频 焊接对象类型：薄板对焊 顶锻加压方式：气体加压式 冷却方式：空冷 控制方式：自动 驱动形式：气动 是否数控：数控 额定容量：25kVA 额定负载持续率：50% 工作周期：20s 焊接频率：50/60Hz 最大焊接厚度：25mm 焊接材质：
2100.00
库存 999
- 品牌：通骏
- 型号：TUN1-25
- 结构类型：台式
- 电源类型：交流/工频
- 焊接对象类型：薄板对焊
- 顶锻加压方式：气体加压式
- 冷却方式：空冷
- 控制方式：自动
- 驱动形式：气动
- 是否数控：数控
- 额定容量：25kVA
- 额定负载持续率：50%
- 工作周期：20s
- 焊接频率：50/60Hz
- 最大焊接厚度：25mm
- 焊接材质：金属
- 作用原理：电阻对焊
- 额定调节级数：7
- 焊件直径：小于250mm
- 外形尺寸：90*80*120mm
- 重量：300kg
- TUN-25：25KVA
- TUN1-35：35KVA
- TUN1-50：50KVA
- TUN-75：75KVA
- TUN1-100：100KVA

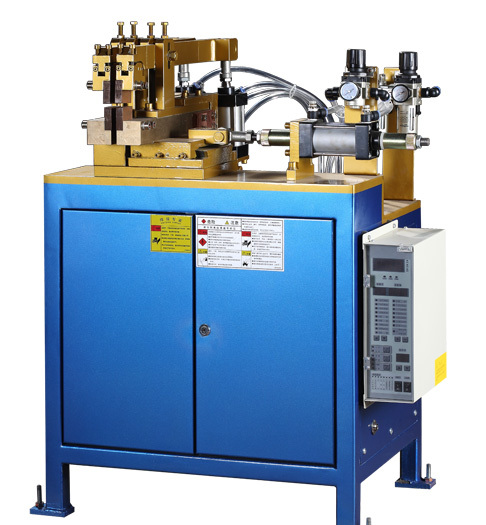

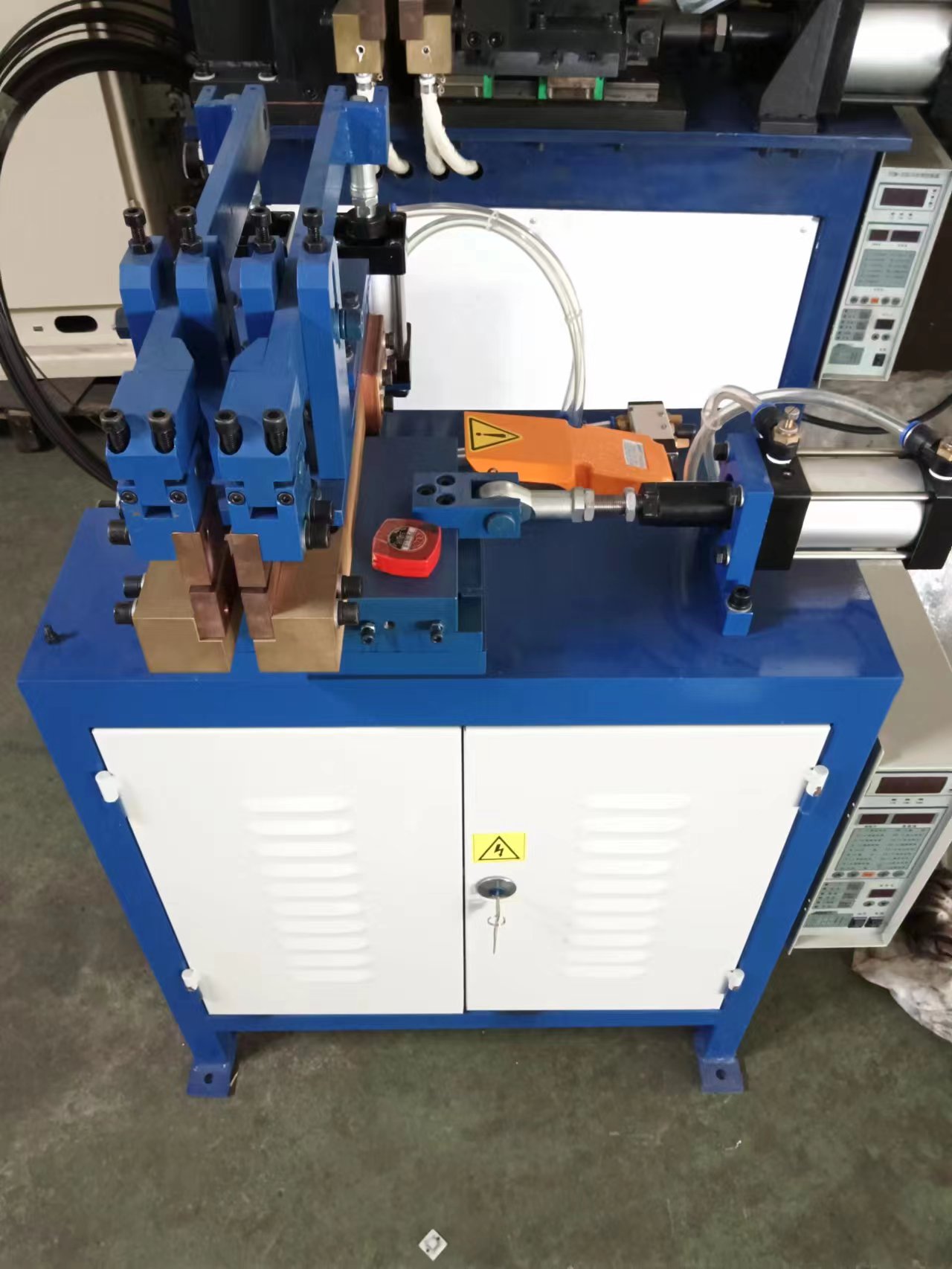

TUN1系列电阻对焊机
TUN1 Series Resistance Butt Welding Machine
特点：
1、电阻对焊机是将两工件端面始终压紧，利用电阻热将接触部分加热至塑性状态，然后迅速施加顶锻压力或不加顶锻压力只保持焊接压力，来完成焊接的方法。

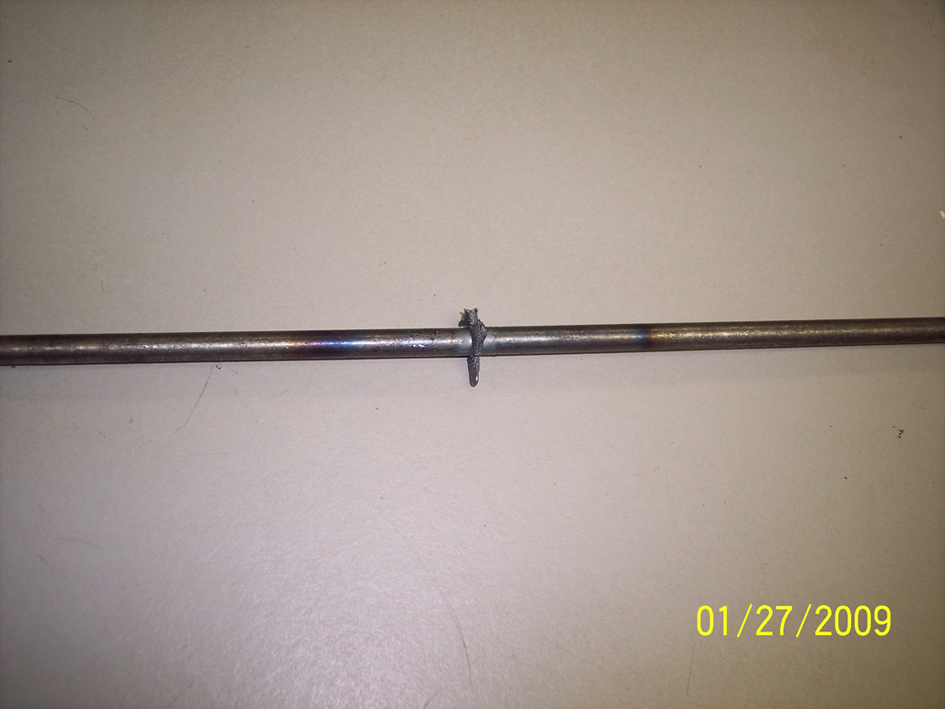

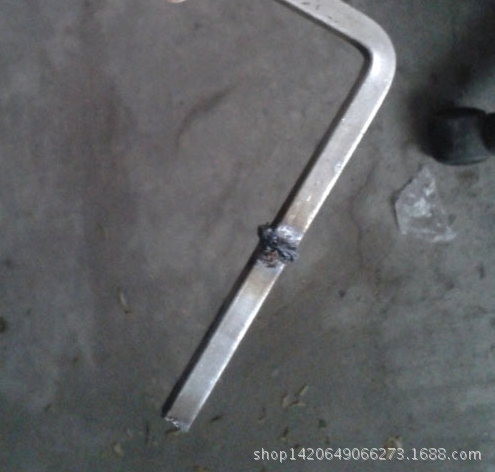

2、与闪光对焊相比，电阻对焊操作简单，价格便宜，焊接效率高，焊接后接头光滑，毛刺小。
3、结构设计精巧，对精细不一的工件焊接容易调整,专用的对焊机控制电路，确保焊接质量。

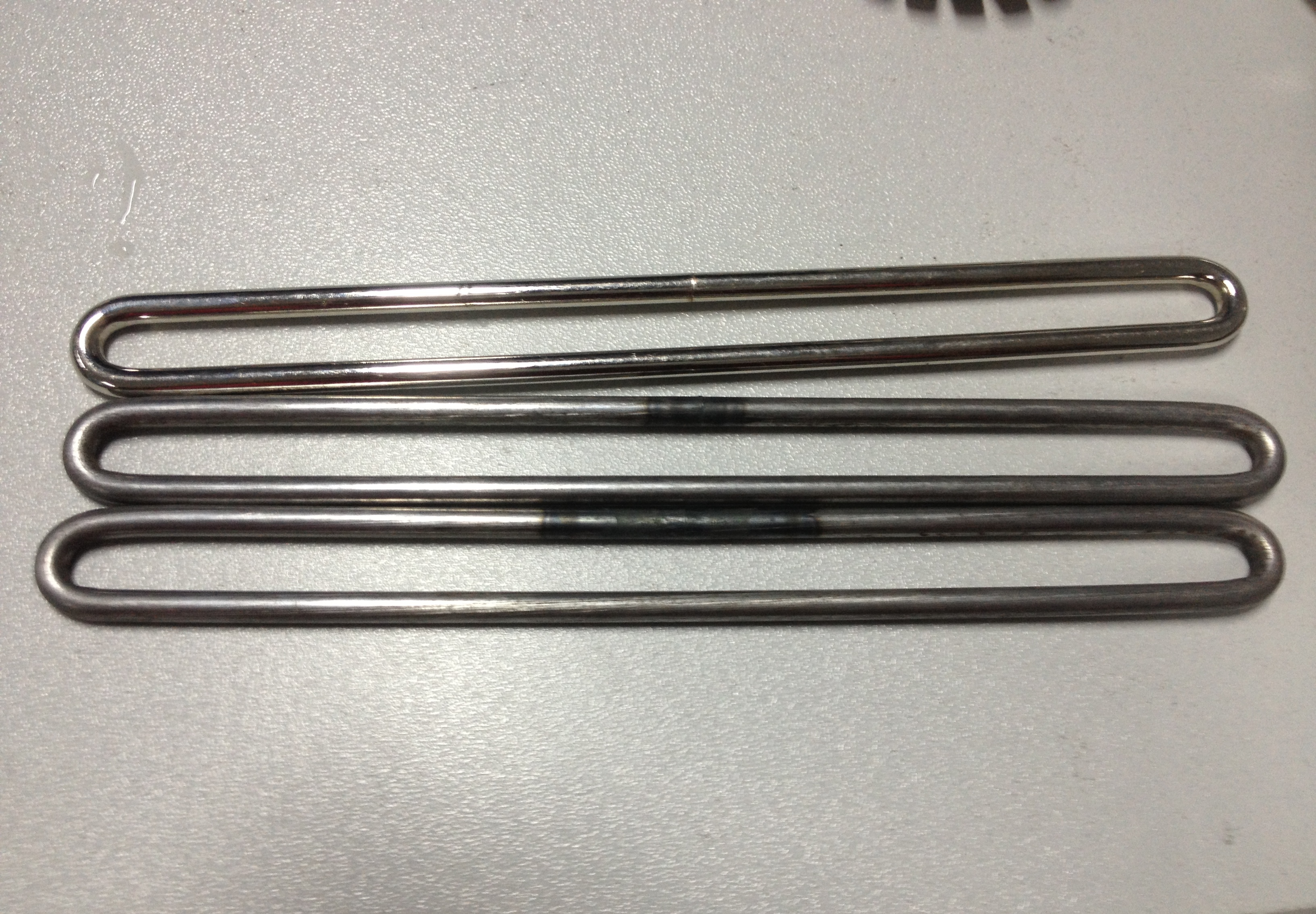

4、主要用于对焊截面积小于250mm的金属型材，如铁线、板料、管材等。
Main Principle:
1、AC Resistance Butt Welding is the welding method that the end surfaces of two parts are pressed tightly,and the resistance heat is used to heat up the surfaces to the plasticized status,then the upsetting force quickly press them together more tight again or without applying the upsetting force pressure,just only hold on the welding pressure to complete the welding.
2、Compared to Flash Butt Welding,Resistance Welding is much easily to for worker use and operate,the cost is much lower,welding productivity is also higher,The welded joint is smooth.and the welding burrs are small
3、The structure is designed compactly which is very easily to be adjusted to weld different parts. The special butt welding control circuits ensure the welding quality.
4、Mainly used for butt welding various metal material with welding section area less than250mm,such as iron,wires,pipes,etc.
主要技术参数：
Main Technical Parameter:
参数 Parameter | 额定容量 Rated Capacity | 额定输入电压 Rated Input Voltage | 额定频率 Rated Frequency |
Max Short Current | 负载持续率 Rated Duty Cycle | 夹紧力 Max Clamping Force | 顶锻力 Max Upsetting Force | 冷却水流量Cooling Water Required | 外形尺寸Over Dimensions L*W*H | 平均重量 Average Weight |
型号 Model No. | ||||||||||
TUN1-25 | 25KVA | 380V | 50/60Hz | 11000A | 50% | 3900N | 1500N | 150L/H | 90*80*120CM | 300Kg |
TUN1-35 | 35KVA | 380V | 50/60Hz | 15000A | 50% | 3900N | 1500N | 150L/H | 90*80*120CM | 350Kg |
TUN1-50 | 50KVA | 380V | 50/60Hz | 19000A | 50% | 3900N | 1500N | 150L/H | 90*80*120CM | 400Kg |
TUN1-75 | 75KVA | 380V | 50/60Hz | 23500A | 50% | 6100N | 2500N | 200L/H | 90*80*120CM | 450Kg |
TUN1-100 | 100KVA | 380V | 50/60Hz | 26000A | 50% | 6100N | 2500N | 200L/H | 90*80*120CM | 500Kg |
TUN1-150 | 150KVA | 380V | 50/60Hz | 31000A | 50% | 8000N | 3900N | 300L/H | 135*80*160CM | 550Kg |
TUN1-200 | 200KVA | 380V | 50/60Hz | 35000A | 50% | 8000N | 3900N | 300L/H | 135*80*160CM | 650Kg |
